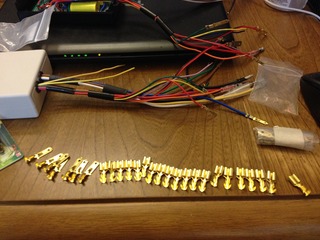

残った配線を取り付けました。
iPhone 002

盗難防止装置っぽいですね。
iPhone 003

PIC12F683を使ったCDIとしてはこれを最後にしたいのですが、、、
やっぱ8pinで作ると、なんだか気持ち良いですね。
この制限された能力でなんとかやりきる感覚。

YPVSコントローラは結構作成に準備がかかります。
以前作っていた時の環境を再構築する必要がありますから。

しっかしオスばっかり使うからメスが余る、、、。
iPhone 001

ちょっとこれ、調達を考えないとツライなぁ。


CDIをYPVS付きに改変するにあたり、大きくH/W側が変更になるのでチェンジログ的なエントリーを残しておきます。
いつものごとくいつまであるかは分かりません。

回路図はこちら
http://urana.info/rilassaru/pic/2013-10-16cdi12f.pdf

プロジェクトファイルはこちら
http://urana.info/rilassaru/pic/2013-10-16cdi12f.zip
点火時期設定ファイルはこちら
http://urana.info/rilassaru/pic/2013-10-16cdi12f.xls
【アーカイブはこちらに移動しました】

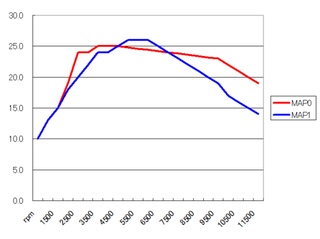

パワーカーブはこちら
http://urana.info/rilassaru/fuchs20131007.pdf
このパワーチェックをした時の点火時期はこちら
e38d2a2a147dda6e01
パワーカーブは7000〜7500が凹んでいるのか、5000〜7000が凸っているのか。
この時BJチャンバーを付けていて、感覚的には凹んでいる様な。
7000位からパワーカーブのギザギザが発生してますから、きれいには回って無い感じがします。
SNSにあるカエゥさんのグラフを見ると8000位からギザギザしてますので、1000回転位差がありますね。

そーいえば、、、購入以来一回もエアクリ掃除してないな、、、

2.2uFのコンデンサについては、普通にイケてますが、費用対効果(1.5uFと200円差くらい)としてはどうかなってところです。
場所も結構とりますしね。
ただ、このトルク感は自分的には好きです。


メインコードは以下の通り。
いつものごとくBSDライセンスなんで、まぁ適当に無許可無承諾で使ってください。
保障は全くございません。
  [コードを表示する]
/** -----------------------------------------------------------------
 CDI12F
 build:   2013/10/16 version 1.2
 author:  Rilassaru
------------------------------------------------------------------ */

#include <htc.h>
//#include <string.h>
#define _XTAL_FREQ 8000000 	// 8MHz
#define SCR_OPEN	300		// SCR open time(us)

#define TRUE 1
#define FALSE 0
#define ON 1
#define OFF 0
#define UINT8	unsigned char
#define UINT16 unsigned int
#define UINT32 unsigned long

__CONFIG(
	FOSC_INTOSCIO &	// Internal osc.
	WDTE_OFF &		// Disable watch dog timer
	PWRTE_ON &		// Enable power on timer
	BOREN_ON &		// Enable brown out
	MCLRE_OFF &		// Disable ~MCLR
	CP_OFF &			// Disable Code protection
	IESO_OFF &		// Disable IE switch over
	FCMEN_OFF			// Disable Fail safe clock
	);

UINT16	gRPM = 0;
UINT8	gFirstSpark = TRUE;
UINT8 	gSW1 = 0;
#define	SW_BUF	256

/** -----------------------------------------------------------------
Ingition timing data
------------------------------------------------------------------ */
#define MIN_RPM	20	// from 2000rpm
#define MAX_RPM	120	// to 12000rpm
// Config value for TMR2
const UINT8 gtblT2CON[2][120]={
//  0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9    0    1    2    3    4    5    6    7    8    9
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3D,0x3D,0x35,0x35,0x2D,0x2D,0x25,0x25,0x25,0x1D,0x74,0x6C,0x6C,0x64,0x64,0x5C,0x5C,0x54,0x54,0x4C,0x4C,0x44,0x44,0x44,0x3C,0x3C,0x3C,0x34,0x34,0x34,0x34,0x34,0x2C,0x2C,0x2C,0x2C,0x2C,0x24,0x24,0x24,0x24,0x24,0x24,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3D,0x3D,0x35,0x35,0x2D,0x2D,0x2D,0x25,0x25,0x25,0x25,0x1D,0x74,0x6C,0x6C,0x64,0x5C,0x5C,0x54,0x54,0x54,0x4C,0x4C,0x4C,0x44,0x44,0x44,0x44,0x3C,0x3C,0x3C,0x3C,0x3C,0x34,0x34,0x34,0x34,0x34,0x34,0x2C,0x2C,0x2C,0x2C,0x2C,0x2C,0x2C,0x2C,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x14,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,}
};

const UINT8 gtblPR2[2][120]={
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF2,0xE1,0xEE,0xDE,0xF1,0xE1,0xFA,0xE8,0xD7,0xFA,0xF7,0xFD,0xF2,0xF9,0xEF,0xF8,0xEC,0xF6,0xEA,0xF6,0xEB,0xFA,0xF1,0xE8,0xFB,0xF1,0xE8,0xFF,0xF6,0xED,0xE4,0xDC,0xF8,0xEF,0xE7,0xDF,0xD7,0xF9,0xF0,0xE8,0xE0,0xD8,0xD1,0xFC,0xF3,0xEA,0xE2,0xDA,0xD2,0xCA,0xC3,0xFA,0xF1,0xE8,0xDF,0xD6,0xCE,0xC6,0xBE,0xB6,0xAE,0xFB,0xF0,0xE6,0xDB,0xD1,0xC7,0xBE,0xB5,0xAB,0xA2,0x9A,0x91,0x89,0x81,0xF2,0xE2,0xD2,0xC3,0xB5,0xA6,0x9D,0x95,0x8C,0x84,0x7B,0x73,0x6B,0x63,0x5C,0x54,0x4D,0x46,0x3F,0x38,0x31,0x2A,0x23,0x1D,0x16,},
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF2,0xE2,0xF1,0xE1,0xF6,0xE6,0xD9,0xF6,0xE8,0xDB,0xCF,0xF5,0xF8,0xFC,0xEE,0xF3,0xFD,0xF3,0xFF,0xF5,0xEC,0xFB,0xF4,0xEC,0xFF,0xF7,0xF0,0xE9,0xFF,0xF8,0xF1,0xEB,0xE4,0xFE,0xF7,0xF1,0xEB,0xE5,0xDF,0xFE,0xF8,0xF2,0xEC,0xE6,0xE0,0xDB,0xD6,0xFB,0xF5,0xEF,0xEA,0xE4,0xDF,0xDA,0xD5,0xD0,0xFF,0xF9,0xF4,0xEE,0xE9,0xE4,0xDF,0xDA,0xD5,0xD0,0xCC,0xC7,0xC3,0xFE,0xF9,0xF3,0xEE,0xE9,0xE4,0xDF,0xDA,0xD5,0xD1,0xCC,0xC7,0xC3,0xBF,0xBB,0xB6,0xB2,0xAE,0xAA,0xFA,0xF4,0xEF,0xE9,0xE4,0xDF,0xDA,0xD5,0xCD,0xC5,0xBD,0xB6,}
};

/** -----------------------------------------------------------------
           1|VDD    PIC12F683    VSS|8
  IN SW1-> 2|GP5             GP0/AN0|7 -x OPEN
 OUT SCR<- 3|GP4             GP1/AN1|6 -> OUT LED
  OPEN  x- 4|GP3/~MCLR  GP2/AN2/CCP1|5 <- IN  PULSE (Input capture)
------------------------------------------------------------------ */
#define SCRGATE	GP4
#define LED		GP1
#define SW1		GP5

/** -----------------------------------------------------------------
 void main(void)
------------------------------------------------------------------ */
void main(void)
{
	OPTION_REG = 0b10000010;	// No PU
	WPU        = 0b00000000;	// No PU
	OSCCON     = 0b01110000;	// 8MHz
	TRISIO     = 0b00100100;	// GP5(I)/GP4(O)/GP3(O)/GP2(I)/GP1(O)/GP0(O)
	ANSEL      = 0b00000000;	// Disaboe all ADC
	CMCON0     = 0x7;			// Disable comparator
	ADCON0     = 0b00000000;	// not use
	CCP1CON    = 0b00000000;	// CCP1 reset

	SCRGATE = 0;

	// Initialize Input capture
	CCP1CON = 0b00000101;	// Every rising edge
	CCP1IF  = 0;			// IF reset

	// Set Timer1
	T1CON  = 0b00010100;	// T1CKPS 1:2
	TMR1IF = 0;
	TMR1L  = 0;
	TMR1H  = 0;

	// Set Timer2
	T2CON = 0;
	TMR2IF = 0;
	PR2 = 0;

	// Initialize interrupt setting
	GIE = 1;
	PEIE = 1;
	TMR1IE = 1;		// Timer1 intterupt on
	TMR2IE = 1;		// Timer2 intterupt on
	TMR1ON = 1;		// Timer1 start
	CCP1IE = 1;		// Capture interrupt on

	LED = 1;
	__delay_ms(5000);
	LED = 0;

	// Main loop
	while(1) {
		int count = 0;
		for(int ii = 0; ii < SW_BUF; ii++) {
			count += SW1;
		}
		gSW1 = ((count >= (SW_BUF/2)) ? 1 : 0);
		LED = gSW1;
		//LED = 1;
	}
}


/** -----------------------------------------------------------------
  void interrupt ISR(void)

------------------------------------------------------------------ */
void interrupt ISR(void)
{

	// Interrupt from Input capture
	if(CCP1IF) {
		signed char deg;
		UINT16 ccpr1;

		// Reset Timer1
		TMR1H=0;
		TMR1L=0;

		// RPM
		ccpr1 = ((CCPR1H * 0x100)|CCPR1L) + 1;
		gRPM = (UINT16)(600000UL/ccpr1);

		if((MAX_RPM > gRPM) && (gRPM >= MIN_RPM)){
			PR2   = gtblPR2[gSW1][gRPM];
			T2CON = gtblT2CON[gSW1][gRPM];
		} else {
			T2CON = 0;
		}
		CCP1IF = 0;
	}

	// Timer1: Timeout means engine stop
	if(TMR1IF) {
		gFirstSpark = TRUE;
		gRPM = 0;

		// Reset intterupt
		TMR1IF = 0;
	}

	// Timer2: Timeout then SCR on
	if(TMR2IF) {
		// Stop Timer2
		TMR2ON = 0;
		SCRGATE = !gFirstSpark;
		__delay_us(SCR_OPEN);
		SCRGATE = 0;
		gFirstSpark = FALSE;

		// Reset intterupt
		TMR2IF = 0;
	}

}

/*---------------------------------------------------------------------------------
Copyright 2012-2013 Rilassaru All rights reserved.
